27539

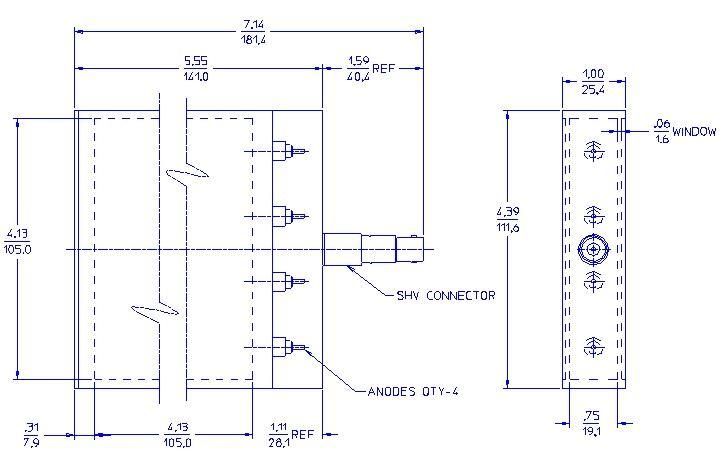

Quadrilateral he3 detector
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
7.14/181.4 |
| GAS FILLING |
He3/CO2/Argon |
| EFFECTIVE LENGTH (INCH/MM) |
4.13/105.0 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| CONNECTOR |
SHV |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| EFFECTIVE DEPTH (INCH/MM) |
0.75/19.1 |
| MAXIMUM WIDTH (INCH/MM) |
4.39/111.6 |
| MAXIMUM DEPTH (INCH/MM) |
1.0/25.4 |
| GAS PRESSURE (TORR) at 21°C |
760 |
| EFFECTIVE WIDTH (INCH/MM) |
4.13/105.0 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
750 |
| OPERATING VOLTAGE RANGE (VOLTS) |
650 - 900 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
3 |
| TUBE CAPACITANCE (PF) |
8 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
N/A |
