3056
Neutron Beam Monitor
General Specifications
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| CONNECTOR |
BNC |
| FILL GAS |
Argon, Nitrogen |
| FILL PRESSURE (TORR) |
760 |

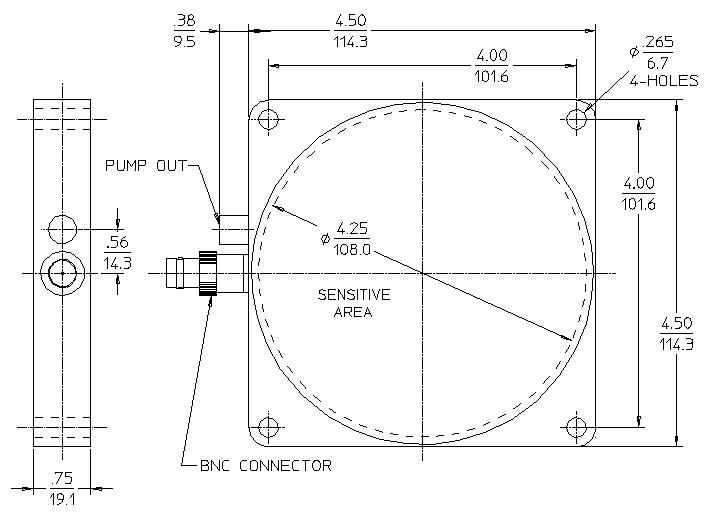

| MAXIMUM WIDTH (INCH/MM) |
4.5/114.3 |
| MAXIMUM HEIGHT (INCH/MM) |
5.56/141.2 |
| MAXIMUM DEPTH (INCH/MM) |
0.75/19.1 |
| SENSITIVE DIAMETER (INCH/MM) |
4.25/108.0 |
Neutron Sensitive Material
| ENRICHMENT (%) |
>93 |
| MATERIAL |
U235 |
| TOTAL QUANTITY (MG) |
0.13 |
Operating Characteristics
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
300 |
| OPERATING VOLTAGE RANGE (VOLTS) |
50-500 |
| BACKGROUND (COUNTS) |
1 |
| NEUTRON SENSITIVITY (COUNTS/1E6 NEUTRONS) |
1 |
