25167
Cylindrical he3 neutron detector

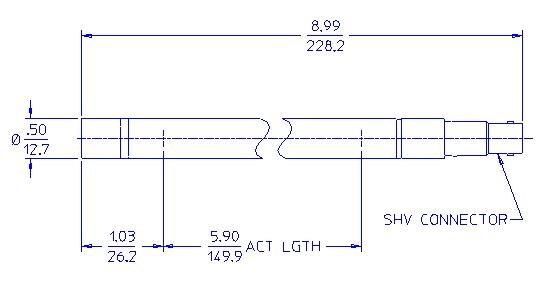

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
8.99/228.2 |
| MAXIMUM DIAMETER (INCH/MM) |
0.50/12.7 |
| EFFECTIVE LENGTH (INCH/MM) |
5.90/149.9 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
0.45/11.4 |
| CONNECTOR |
SHV |
| OPERATING TEMPERATURE RANGE °C |
-40 to +100 |
| GAS PRESSURE (TORR) at 21°C |
8000 |
| EFFECTIVE VOLUME (CM³) |
15 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1250 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1150-1400 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
4 |
| WEIGHT (GRAMS) |
75 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
5.9 |
