262
Quadrilateral he3 detector

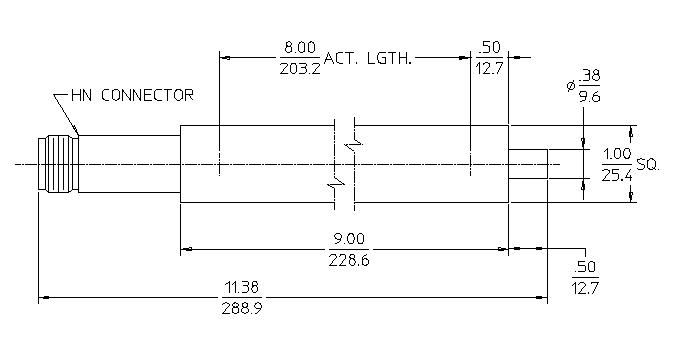

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
11.38/289.05 |
| EFFECTIVE LENGTH (INCH/MM) |
8.0/203.2 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| MAXIMUM WIDTH (INCH/MM) |
1.0/25.4 |
| GAS PRESSURE (TORR) at 21°C |
3040 |
| EFFECTIVE VOLUME (CM³) |
99.16 |
| EFFECTIVE WIDTH (INCH/MM) |
0.87/22.1 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1250 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1100 - 1400 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
7 |
| WEIGHT (GRAMS) |
198 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
24.3 |
