42210

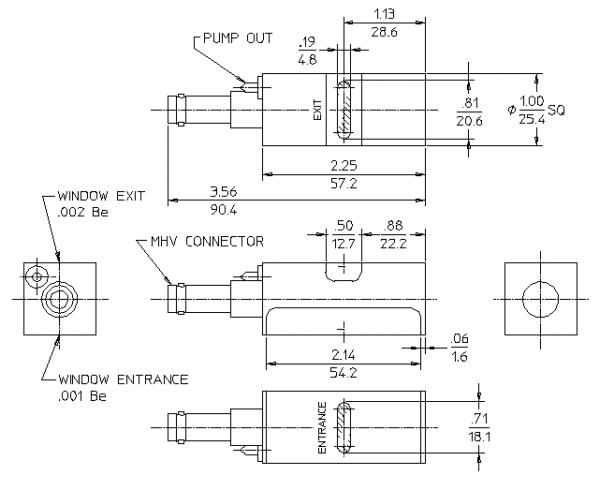

Quadrilateral side window proportional counter
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
3.56/90.4 |
| GAS FILLING |
Neon |
| EFFECTIVE LENGTH (INCH/MM) |
1.25/31.8 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
| MAXIMUM WIDTH (INCH/MM) |
1.0/25.4 |
| GAS PRESSURE (TORR) at 21°C |
800 |
| EFFECTIVE WIDTH (INCH/MM) |
0.75/19.1 |
| PATH LENGTH (INCH/MM) |
0.75/19.1 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
950 |
| OPERATING VOLTAGE RANGE (VOLTS) |
850 - 1050 |
| CAPACITANCE (PF) |
3 |
| TYPICAL RESOLUTION (FWHM FE55) |
20 |
EXIT WINDOW SPECIFICATIONS
| MATERIAL |
Beryllium |
| AREAL DENSITY (MG/CM²) |
9.2 |
| THICKNESS (INCH/MM) |
0.002/0.05 |
| DIMENSIONS (INCH/MM) |
0.19 x 0.81/4.8 x 20.6 |
ENTRANCE WINDOW SPECIFICATIONS
| MATERIAL |
Beryllium |
| AREAL DENSITY (MG/CM²) |
4.5 |
| THICKNESS (INCH/MM) |
0.001/0.025 |
| DIMENSIONS (INCH/MM) |
0.19 x 0.81/4.8 x 20.6 |
