42414
Linear beryllium window position sensitive

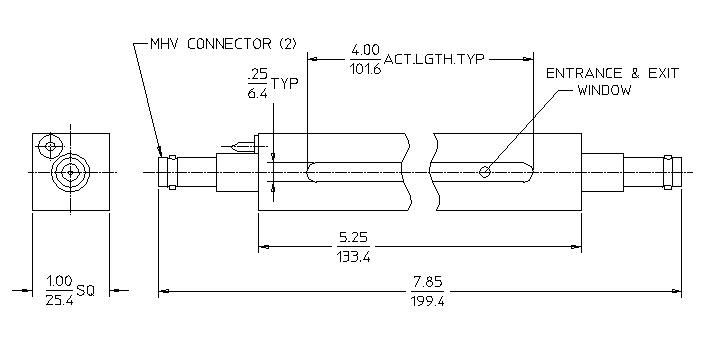

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
8.0/203.2 |
| GAS FILLING |
Argon |
| EFFECTIVE LENGTH (INCH/MM) |
4.0/101.6 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| CONNECTOR |
MHV |
| ANODE |
Nichrome Wire 330 ohms/inch |
| MAXIMUM WIDTH (INCH/MM) |
1.0/25.4 |
| MAXIMUM OPERATING TEMPERATURE °C |
50 |
| GAS PRESSURE (TORR) at 21°C |
760 |
| EFFECTIVE WIDTH (INCH/MM) |
0.75/19.1 |
| PATH LENGTH (INCH/MM) |
0.75/19.1 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1650 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1550 - 1800 |
| MAXIMUM ENERGY RESOLUTION (%FWHM FE55) |
18 |
| POSITION RESOLUTION (MM) |
0.25 |
EXIT WINDOW SPECIFICATIONS
| MATERIAL |
Beryllium |
| AREAL DENSITY (MG/CM²) |
23 |
| THICKNESS (INCH/MM) |
0.005/0.13 |
| DIMENSIONS (INCH/MM) |
0.25 x 4.0/6.35 x 101.6 |
ENTRANCE WINDOW SPECIFICATIONS
| MATERIAL |
Beryllium |
| AREAL DENSITY (MG/CM²) |
9.2 |
| THICKNESS (INCH/MM) |
0.002/0.05 |
| DIMENSIONS (INCH/MM) |
0.25 x 4.0/6.35 x 101.6 |
