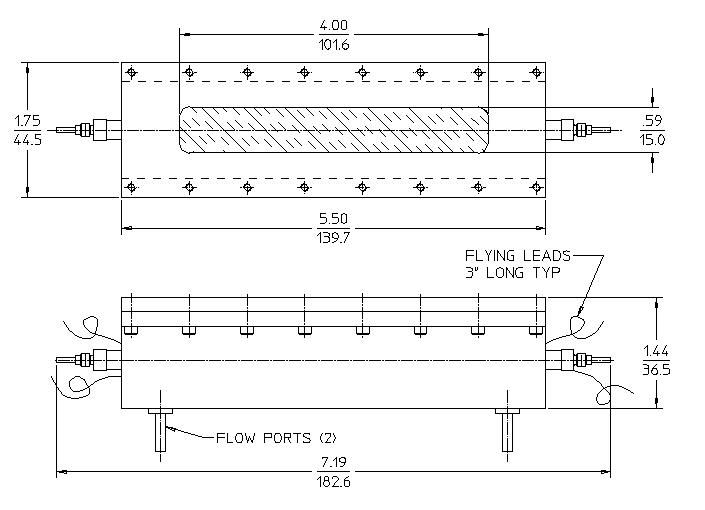

42423
Linear flow position sensitive
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
8.38/212.9 |
| EFFECTIVE LENGTH (INCH/MM) |
4.0/101.6 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| CONNECTOR |
Wire Lead |
| ANODE |
Nichrome Wire 330 ohms/inch |
| MAXIMUM WIDTH (INCH/MM) |
1.5/38.1 |
| MAXIMUM OPERATING TEMPERATURE °C |
50 |
| EFFECTIVE WIDTH (INCH/MM) |
0.59/15.0 |
| PATH LENGTH (INCH/MM) |
0.75/19.1 |
WINDOW SPECIFICATIONS
| MATERIAL |
Mylar |
| THICKNESS (INCH/MM) |
0.0005/0.0127 |
| AREAL DENSITY (MG/CM²) |
9.2 |
| DIMENSIONS (INCH/MM) |
0.59 x 4.0/15.0 x 101.6 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
Dependent on Gas |
| TYPICAL RESOLUTION (FWHM FE55) |
18 |
| POSITION RESOLUTION (MM) |
0.25 |
