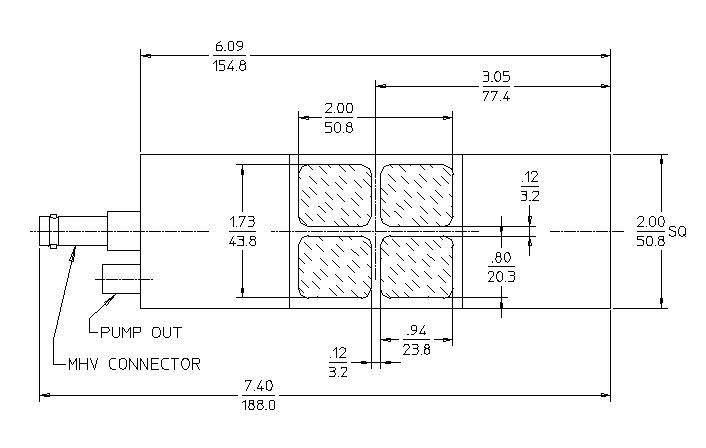

42511
Quadrilateral side window proportional counter
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
7.4/187.96 |
| GAS FILLING |
Argon |
| EFFECTIVE LENGTH (INCH/MM) |
4.75/120.65 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
| MAXIMUM WIDTH (INCH/MM) |
2.0/50.8 |
| GAS PRESSURE (TORR) at 21°C |
760 |
| EFFECTIVE WIDTH (INCH/MM) |
1.75/44.45 |
| PATH LENGTH (INCH/MM) |
1.75/44.45 |
Window Specifications
| MATERIAL |
Beryllium |
| THICKNESS (INCH/MM) |
0.005/0.127 |
| AREAL DENSITY (MG/CM²) |
22.8 |
| DIMENSIONS (INCH/MM) |
2.0 x 1.73/50.8 x 43.8 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1800 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1700 - 1950 |
| CAPACITANCE (PF) |
3 |
| TYPICAL RESOLUTION (FWHM FE55) |
18 |
