428
Quadrilateral side window proportional counter
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
7.44/188.98 |
| GAS FILLING |
Argon |
| EFFECTIVE LENGTH (INCH/MM) |
5.36/136.14 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
| MAXIMUM WIDTH (INCH/MM) |
2.0/50.8 |
| GAS PRESSURE (TORR) at 21°C |
800 |
| EFFECTIVE WIDTH (INCH/MM) |
1.75/44.45 |
| PATH LENGTH (INCH/MM) |
1.75/44.45 |
Window Specifications
| MATERIAL |
Beryllium |
| THICKNESS (INCH/MM) |
0.002/0.05 |
| AREAL DENSITY (MG/CM²) |
9.2 |

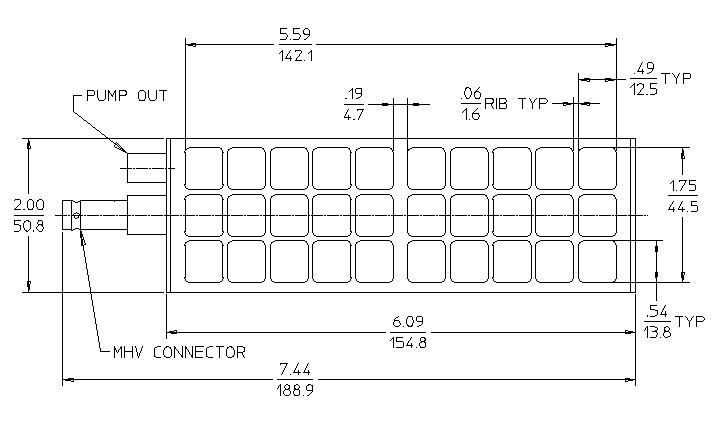

| DIMENSIONS (INCH/MM) |
1.75 x 5.59/44.45 x 142.1 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1850 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1750 - 2000 |
| CAPACITANCE (PF) |
3 |
| TYPICAL RESOLUTION (FWHM FE55) |
16 |
