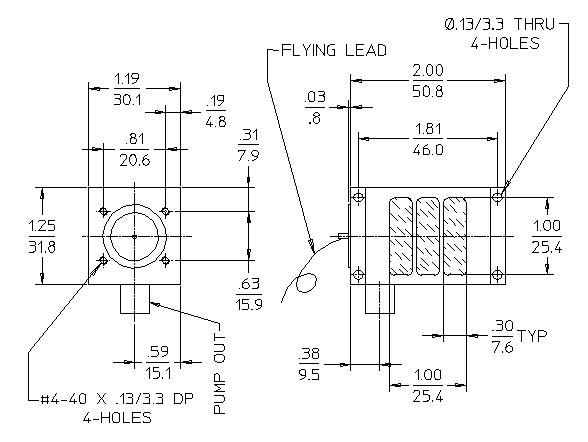

42830

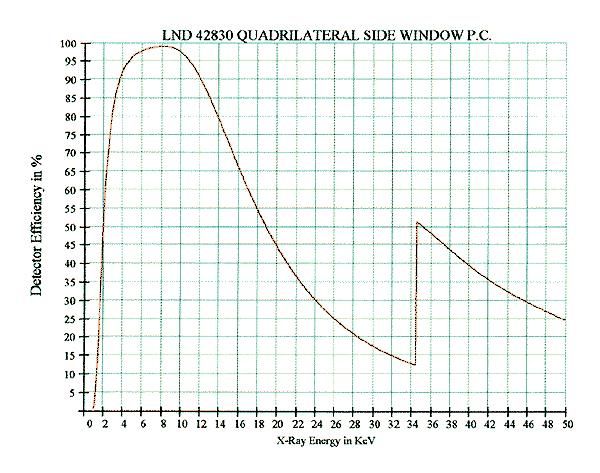

Quadrilateral side window proportional counter
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
2.5/63.5 |
| GAS FILLING |
Xenon |
| EFFECTIVE LENGTH (INCH/MM) |
1.5/38.1 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| CONNECTOR |
Flying Lead |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
| MAXIMUM WIDTH (INCH/MM) |
1.69/42.93 |
| GAS PRESSURE (TORR) at 21°C |
1140 |
| EFFECTIVE WIDTH (INCH/MM) |
1.0/25.4 |
| PATH LENGTH (INCH/MM) |
1.0/25.4 |
Window Specifications
| MATERIAL |
Beryllium |
| THICKNESS (INCH/MM) |
0.002/0.05 |
| AREAL DENSITY (MG/CM²) |
9.2 |
| DIMENSIONS (INCH/MM) |
1.0 x 1.0/25.4 x 25.4 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1950 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1850 - 2100 |
| CAPACITANCE (PF) |
3 |
| TYPICAL RESOLUTION (FWHM FE55) |
18 |
