4333
Mica window alpha- beta – gamma proportional counter

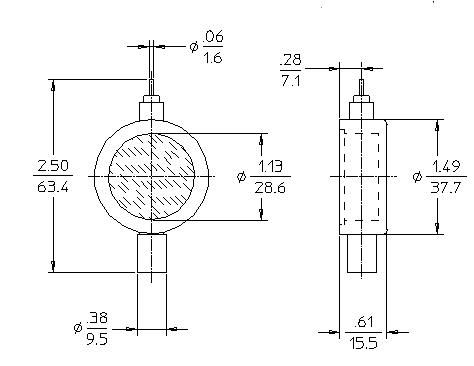

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
2.5/63.4 |
| MAXIMUM DIAMETER (INCH/MM) |
1.49/37.7 |
| GAS FILLING |
Neon |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
1.13/28.6 |
| CONNECTOR |
Pin |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
| GAS PRESSURE (TORR) at 21°C |
600 |
| PATH LENGTH (INCH/MM) |
0.49/12.45 |
Window Specifications
| MATERIAL |
Mica |
| AREAL DENSITY (MG/CM²) |
2.0 - 2.2 |
| DIAMETER (INCH/MM) |
1.13/28.6 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
400/650 |
| OPERATING VOLTAGE RANGE (VOLTS) |
400 - 800 |
| CAPACITANCE (PF) |
3 |
