45431
Beryllium side window proportional counter
General Specifications

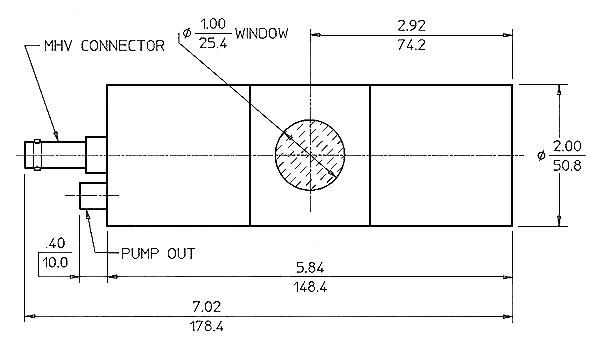

| MAXIMUM LENGTH (INCH/MM) |
7.02/178.4 |
| MAXIMUM DIAMETER (INCH/MM) |
2.00/50.8 |
| GAS FILLING |
Krypton |
| EFFECTIVE LENGTH (INCH/MM) |
4.5/114.3 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
1.88/47.8 |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
| GAS PRESSURE (TORR) at 21°C |
800 |
| PATH LENGTH (INCH/MM) |
1.88/47.8 |
Window Specifications
| MATERIAL |
Beryllium |
| THICKNESS (INCH/MM) |
0.005/0.127 |
| AREAL DENSITY (MG/CM²) |
23 |
| DIAMETER (INCH/MM) |
1.0/25.4 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1800 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1700 - 1950 |
| CAPACITANCE (PF) |
3 |
| TYPICAL RESOLUTION (FWHM CD109) |
10 |
