45447
Beryllium end window proportional counter

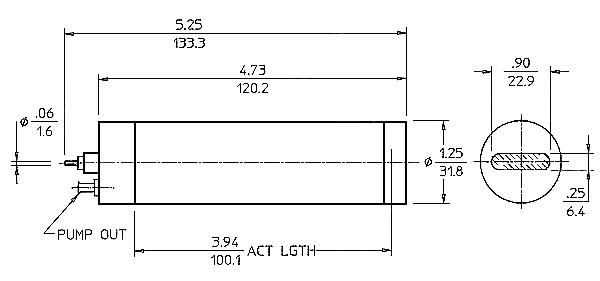

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
5.25/133.4 |
| MAXIMUM DIAMETER (INCH/MM) |
1.25/31.8 |
| GAS FILLING |
Xenon |
| EFFECTIVE LENGTH (INCH/MM) |
3.94/100 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
0.90/22.8 |
| CONNECTOR |
Pin |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
| GAS PRESSURE (TORR) at 21°C |
760 |
| PATH LENGTH (INCH/MM) |
3.94/100.08 |
Window Specifications
| MATERIAL |
Beryllium |
| THICKNESS (INCH/MM) |
0.001/0.025 |
| AREAL DENSITY (MG/CM²) |
4.6 |
| DIMENSIONS (INCH/MM) |
0.25 x 0.90/6.35 x 22.9 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1800 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1600 - 2050 |
| CAPACITANCE (PF) |
3 |
| TYPICAL RESOLUTION (FWHM CD109) |
10 |
