45472

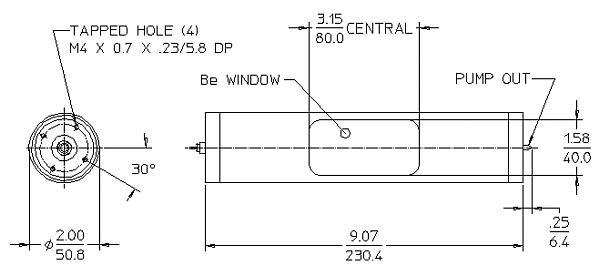

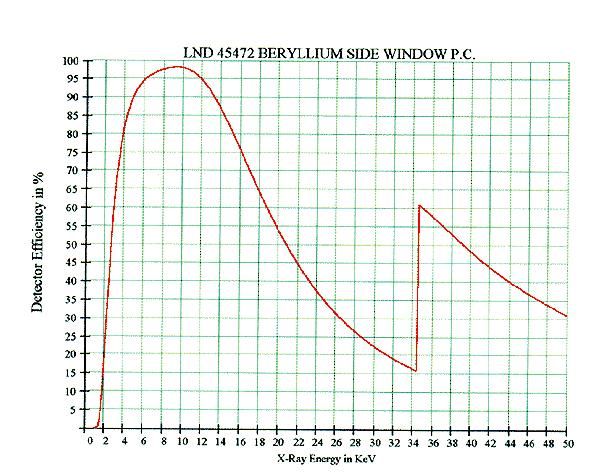

Beryllium side window proportional counter
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
9.5/241.3 |
| MAXIMUM DIAMETER (INCH/MM) |
2.00/50.8 |
| GAS FILLING |
Xenon |
| EFFECTIVE LENGTH (INCH/MM) |
7.5/190.5 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
1.88/47.8 |
| CONNECTOR |
Pin |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
| GAS PRESSURE (TORR) at 21°C |
800 |
| PATH LENGTH (INCH/MM) |
1.88/47.8 |
Window Specifications
| MATERIAL |
Beryllium |
| THICKNESS (INCH/MM) |
0.005/0.127 |
| AREAL DENSITY (MG/CM²) |
23 |
| DIMENSIONS (INCH/MM) |
1.57 x 3.15/40.0 x 80.0 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
2000 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1900 - 2150 |
| CAPACITANCE (PF) |
3 |
| TYPICAL RESOLUTION (FWHM CD109) |
10 |
