455
Beryllium side window proportional counter

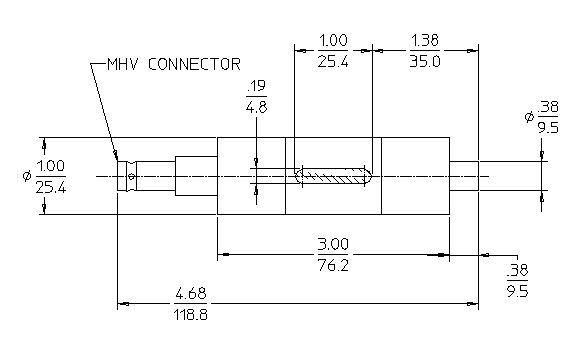

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
4.68/118.87 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| GAS FILLING |
Argon |
| EFFECTIVE LENGTH (INCH/MM) |
1.75/44.45 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
0.87/22.1 |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
| GAS PRESSURE (TORR) at 21°C |
800 |
| PATH LENGTH (INCH/MM) |
0.87/22.1 |
Window Specifications
| MATERIAL |
Beryllium |
| THICKNESS (INCH/MM) |
0.002/0.05 |
| AREAL DENSITY (MG/CM²) |
9.2 |
| DIMENSIONS (INCH/MM) |
0.19 x 1.0/4.8 x 25.4 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1700 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1600 - 1850 |
| CAPACITANCE (PF) |
3 |
| TYPICAL RESOLUTION (FWHM FE55) |
16 |
