45641
Side window proportional counter

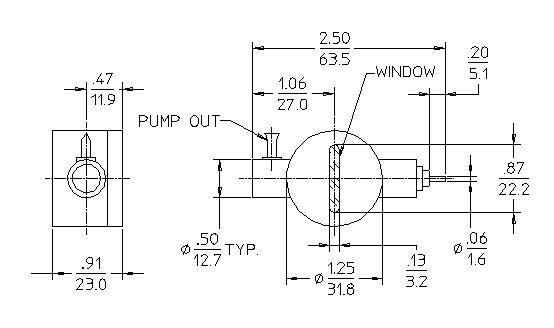

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
2.5/63.6 |
| MAXIMUM DIAMETER (INCH/MM) |
1.25/3.18 |
| GAS FILLING |
Argon |
| EFFECTIVE LENGTH (INCH/MM) |
1.0/25.4 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
0.87/22.2 |
| CONNECTOR |
Pin |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
| GAS PRESSURE (TORR) at 21°C |
800 |
| PATH LENGTH (INCH/MM) |
0.75/19.05 |
Window Specifications
| MATERIAL |
Beryllium |
| THICKNESS (INCH/MM) |
0.001/0.025 |
| AREAL DENSITY (MG/CM²) |
4.6 |
| DIMENSIONS (INCH/MM) |
0.13/3.2 X 0.87 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1600 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1500 - 1750 |
| CAPACITANCE (PF) |
3 |
| TYPICAL RESOLUTION (FWHM FE55) |
20 |
