4565
Beryllium side window proportional counter

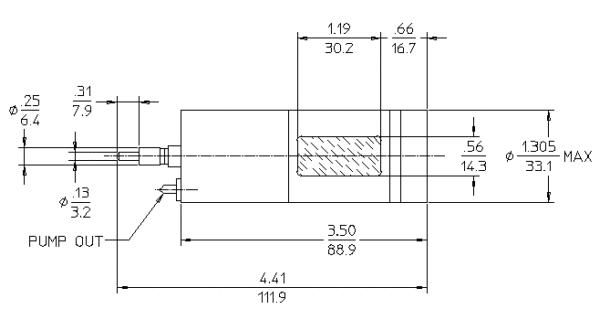

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
4.41/111.9 |
| MAXIMUM DIAMETER (INCH/MM) |
1.305/33.1 |
| GAS FILLING |
Xenon |
| EFFECTIVE LENGTH (INCH/MM) |
3.0/76.2 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
1.062/26.9 |
| CONNECTOR |
Grid Cap |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
| GAS PRESSURE (TORR) at 21°C |
255 |
| PATH LENGTH (INCH/MM) |
1.062/26.9 |
Window Specifications
| MATERIAL |
Beryllium |
| THICKNESS (INCH/MM) |
0.005/0.127 |
| AREAL DENSITY (MG/CM²) |
23 |
| DIMENSIONS (INCH/MM) |
1.19 x 0.56/30.2 x 14.2 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1200 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1100 - 1350 |
| CAPACITANCE (PF) |
3 |
| TYPICAL RESOLUTION (FWHM FE55) |
18 |
