4568
Beryllium window proportional counter

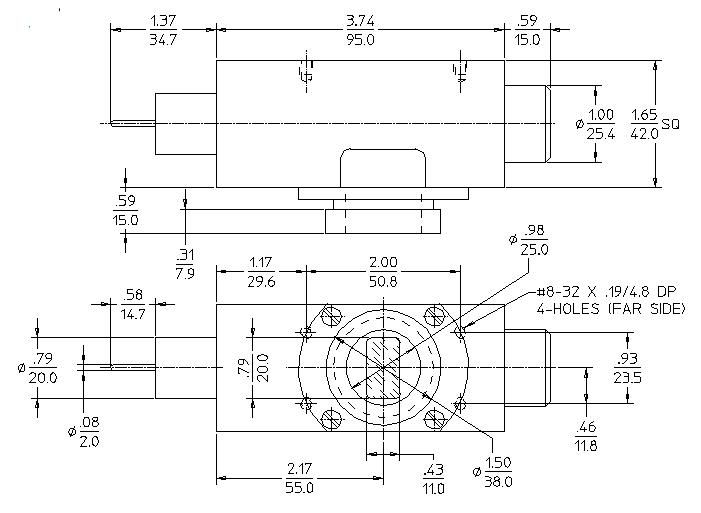

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
5.7/144.7 |
| GAS FILLING |
Xenon |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| CONNECTOR |
Pin |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
| MAXIMUM WIDTH (INCH/MM) |
1.65/42.0 |
| MAXIMUM DEPTH (INCH/MM) |
2.24/57.0 |
| GAS PRESSURE (TORR) at 21°C |
800 |
| PATH LENGTH (INCH/MM) |
1.14/28.98 |
Window Specifications
| MATERIAL |
Beryllium |
| THICKNESS (INCH/MM) |
0.002/0.05 |
| AREAL DENSITY (MG/CM²) |
9.2 |
| DIMENSIONS (INCH/MM) |
0.43 x 0.79/10.9 x 20.0 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1900 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1800 - 2050 |
| CAPACITANCE (PF) |
3 |
| TYPICAL RESOLUTION (FWHM FE55) |
17 |
