45152
Beryllium side window proportional counter

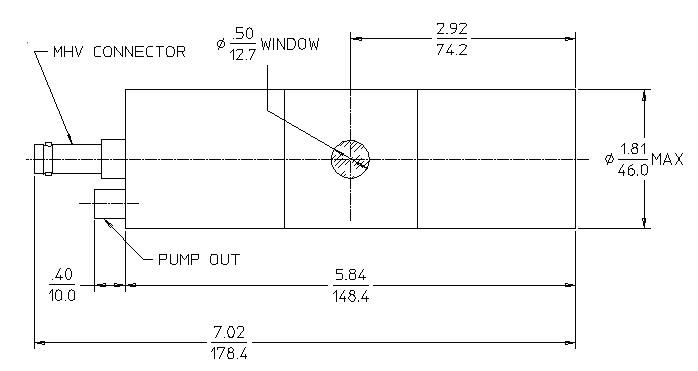

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
7.02/178.4 |
| MAXIMUM DIAMETER (INCH/MM) |
1.81/45.97 |
| GAS FILLING |
Neon / Argon |
| EFFECTIVE LENGTH (INCH/MM) |
4.5/114.3 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
1.69/42.9 |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
| GAS PRESSURE (TORR) at 21°C |
800 |
Window Specifications
| MATERIAL |
Beryllium |
| THICKNESS (INCH/MM) |
0.001 / 0.025 |
| AREAL DENSITY (MG/CM²) |
4.6 |
| DIAMETER (INCH/MM) |
0.5/12.7 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
650 |
| OPERATING VOLTAGE RANGE (VOLTS) |
500 - 850 |
| CAPACITANCE (PF) |
3 |
| TYPICAL RESOLUTION (FWHM FE55) |
12 - 14 |
