452
Beryllium window proportional counter
General Specifications

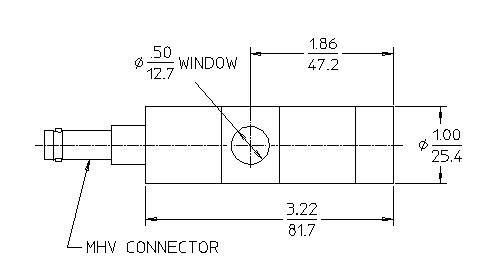

MAXIMUM LENGTH (INCH/MM) |
4.53/115.0 |
MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
GAS FILLING |
Argon |
EFFECTIVE LENGTH (INCH/MM) |
1.39/35.3 |
CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
EFFECTIVE DIAMETER (INCH/MM) |
0.82/20.8 |
CONNECTOR |
MHV |
OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
GAS PRESSURE (TORR) at 21°C |
800 |
PATH LENGTH (INCH/MM) |
0.82/20.8 |
Window Specifications
MATERIAL |
Beryllium |
THICKNESS (INCH/MM) |
0.002/0.05 |
AREAL DENSITY (MG/CM²) |
9.2 |
DIAMETER (INCH/MM) |
0.5/12.7 |
Electrical Specifications
RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1600 |
OPERATING VOLTAGE RANGE (VOLTS) |
1500 - 1750 |
CAPACITANCE (PF) |
3 |
TYPICAL RESOLUTION (FWHM FE55) |
18 |
